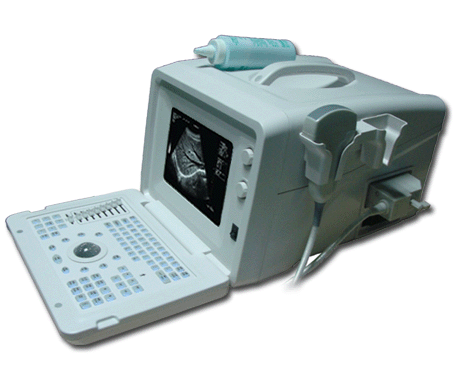

Apollo 9 is most selling model of Novadex Medical Systems because of its ergonomic design, large lcd display and state-of-the-art features and resolutions. Enriched digital beam former and fast process makes this scanner highly efficient in professional ultrasonography.



 Technical Specification





B,M,2B,B/M,4B

Gray scale   256

15”LCD monitor Display

2-11 Mhz Tranducer frequency

Wide-angle imaging

Panoramic focusing technology

Rolling M technology

300mm scanning depth

Image Processing

Cloud processing technology

8-segment TGC

 Dynamic range

M Soften

Noise suppression

Image enhancement

Gray Map

 Colorize Map

Tissue Specific Imaging

Left/right reverse

Up/down reverse



334 frame cine loop memory

2 USB ports:

Pan zoom

Tissue Harmonic Imaging

Measurement & Calculations

Distance, angle, area, volume, trace length, distance ratio

Distance, time, slope, HR

2 active transducer connector ports

Video,2 USB ports,1 networking   port,1 power inlet,1 equipotential terminal

 AC 100-240V 50/60HZ <80VA



Approximately 6.7kg
